Cooling Table

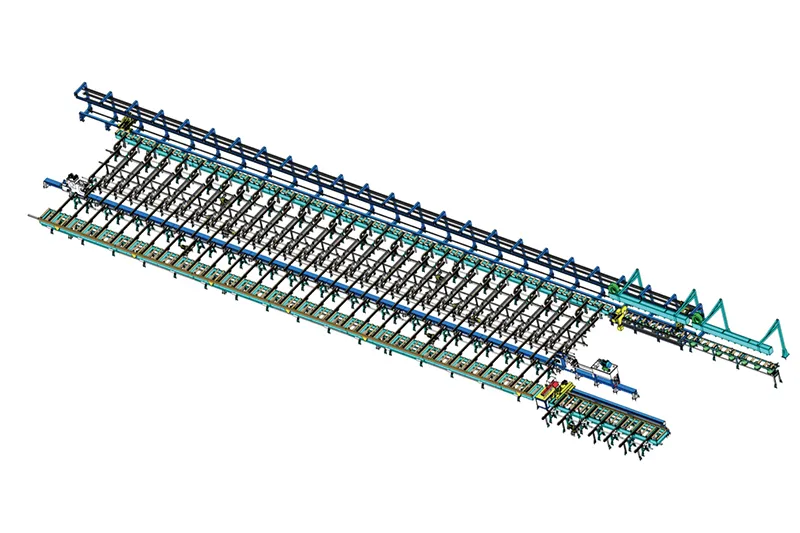

Belt transfer cooling conveyor system used in aluminum extrusion process for cooling and handling aluminum profiles
Aluminum Extrusion Equipment
Cooling Table
Belt transfer cooling conveyor system used in aluminum extrusion process for cooling and handling aluminum profiles
The cooling table is designed for aluminum extrusion equipment of 1650T and above or for processing high-precision profiles. It features up to 500T hydraulic straightening equipment and employs a walking-style conveyor system to prevent surface scratches on profiles, a common issue with traditional cooling beds. The surface of the equipment uses high-temperature-resistant Kevlar felt, offering superior heat adaptability. It also incorporates a pneumatic fixed-length saw table with a cutting precision of ±0.8mm.
Specifications
| Aluminum Profile Size | Cross-section width:20-200mm Thickness:1-10mm Length:1-10m |
| Conveying Speed | 1-10m/min |
| Rated Production Capacity | 1-10t/hr or 100-1000m/hr |
| Motor Power | Conveying motor power:1-10kW Cooling fan motor power:3-20kW |
| Machine Dimensions | Length:5-20m Width:1-5m Height:1-3m |
| Machine Weight | 1-10t |
Features
- Utilizes effective cooling options such as air cooling, water cooling, or specially designed cooling structures to accelerate heat dissipation and significantly reduce cooling time.
- Features PLC or CNC control systems, enabling automatic feeding, conveying, and discharging functions. This reduces manual intervention, enhances production efficiency, and ensures product quality consistency.
- Adjustable components and interchangeable parts make it suitable for various aluminum profiles with different specifications and shapes, meeting diverse production requirements.
- Some cooling tables are equipped with pneumatic fixed-length saws, offering cutting precision as high as ±0.8mm.
- Components are easy to dismantle and replace, simplifying daily maintenance and reducing repair costs and downtime. This enhances equipment lifespan and operational reliability.
- The cooling table integrates seamlessly with aluminum extrusion presses, pullers, aging furnaces, and other production equipment, creating a fully automated and continuous aluminum profile production line.
Options of Cooling Table
| Tonnage | Inch | Size (Length×Width) | Tonnage of Stretcher | Total Power of Cooling Table | Stretcher Type |
| 3.5" | 26000×6000mm | 20t | 40kW | Two-person stretcher system | |
| 3.5" | One-person stretcher system | ||||
| 4" | 26000×6000mm | 20t | 40kW | Two-person stretcher system | |
| 4" | One-person stretcher system | ||||
| 5" | 26000×6000mm 32000×6000mm | 30t | 50kW | Two-person stretcher system | |
| 5" | One-person stretcher system | ||||
| 5.5" | 26000×6000mm 32000×6000mm | 40t | 50kW | Two-person stretcher system | |
| 5.5" | One-person stretcher system | ||||
| 6" | 32000×7000mm 38000×8000mm | 50-60t | 50kW | Two-person stretcher system | |
| 6" | One-person stretcher system | ||||
| 6.5" | 38000×8000mm | 60t | 55kW | Two-person stretcher system | |
| 6.5" | One-person stretcher system | ||||
| 7" | 38000×9000mm | 80t | 60kW | Two-person stretcher system | |
| 7" | One-person stretcher system | ||||
| 7.5" | 38000×10000mm | 80-100t | 70kW | Two-person stretcher system | |
| 7.5" | One-person stretcher system | ||||
| 8" | 38000×11000mm | 100-120t | 90kW | Two-person stretcher system | |
| 8" | One-person stretcher system | ||||
| 9" | 42000×12000mm | 150-200t | 95kW | Two-person stretcher system | |
| 9" | One-person stretcher system | ||||
| 10" | 42000×13000mm | 200t | 105kW | Two-person stretcher system | |
| 10" | One-person stretcher system | ||||
| 12" | 45000×13000mm | 250-300t | 210kW | Two-person stretcher system | |
| 12" | One-person stretcher system | ||||
| 12.5" | 45000×14000mm | 300-350t | 240kW | Two-person stretcher system | |
| 12.5" | One-person stretcher system | ||||
| 13" | 45000×14000mm | 350-400t | 270kW | Two-person stretcher system | |
| 13" | One-person stretcher system | ||||
| 14" | 45000×14000mm 50000×15000mm | 400-500t | 300kW | Two-person stretcher system | |
| 14" | One-person stretcher system |
